Ørsted has successfully completed offshore site investigations in support of Skipjack Wind’s Development.
How Offshore Geophysical Surveys Work
Just as you would survey the land and soil before building a home, offshore wind developers survey the seabed and geology in lease areas and along proposed cable routes, before building an offshore wind farm. Prior to construction, offshore surveys use a variety of small nearshore and larger offshore vessels to acquire information for state and federal permits, applications and to help inform project design. We map the underwater habitat to minimize any impact the project might have on marine life and archaeological resources important to indigenous people.
While conducting offshore survey operations, we take the following protective measures:
Vessel speeds
To reduce the risk of interaction with marine mammals and protected species, our survey vessels operate under a 10-knot speed restriction during transit and operations.
Observers on board
While conducting survey operations, all Ørsted-contracted survey vessels have trained observers onboard to watch for marine mammals and protected species 24 hours a day. Observers are equipped with visual technology, such as thermal imaging, that enhances detection ability, especially during periods of low visibility.
In compliance with regulations set by the National Marine Fisheries Service (NMFS), these observers actively look for whales, dolphins, other marine mammals, and protected species in the vicinity of the vessel. The observers direct the vessel to conduct an array of mitigation measures, where appropriate, to prevent impacts. This can include a change of course or shutdown of the relevant sound sources.
We track and record all observations of marine mammals and protected species throughout our survey operations.
Vessel speeds
To reduce the risk of interaction with marine mammals and protected species, our survey vessels operate under a 10-knot speed restriction during transit and operations.
Observers on board
While conducting survey operations, all Ørsted-contracted survey vessels have trained observers onboard to watch for marine mammals and protected species 24 hours a day. Observers are equipped with visual technology, such as thermal imaging, that enhances detection ability, especially during periods of low visibility.
In compliance with regulations set by the National Marine Fisheries Service (NMFS), these observers actively look for whales, dolphins, other marine mammals, and protected species in the vicinity of the vessel. The observers direct the vessel to conduct an array of mitigation measures, where appropriate, to prevent impacts. This can include a change of course or shutdown of the relevant sound sources.
We track and record all observations of marine mammals and protected species throughout our survey operations.
Offshore geophysical surveys
We conduct high-resolution geophysical (HRG) surveys to map the seafloor and the geology beneath it, and to identify archaeological resources and debris left by other ocean users.
Equipment used includes both acoustic equipment with varying frequencies of sound and passive sensors that do not emit sound. During HRG survey operations, vessels typically move at a low speed, between 2-4 knots (3-5 mph) transiting along straight survey lines.

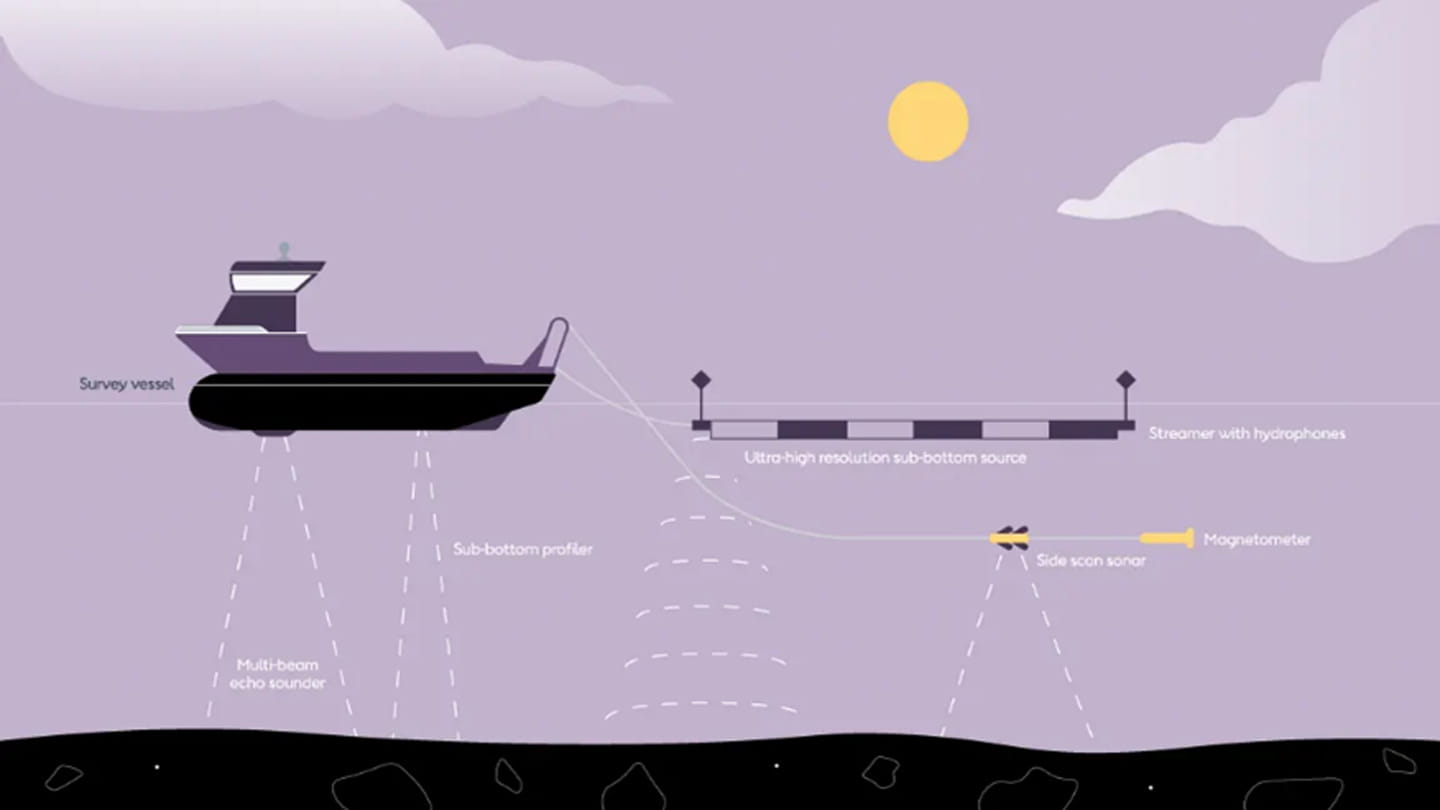

HRG Survey (devices not to scale - for illustrative purposes only)
Only a few HRG sources used in offshore wind surveys operate at frequencies detectable to marine mammals. Federal agencies have determined that no injury to marine mammals or protected species is expected from these HRG sources as the sound is shown to diminish rapidly with distance (BOEM 2018).
Sources used in offshore wind that are detectable produce much lower energy and travel far shorter distances from the vessel than those used by the oil and gas industry for exploration miles below the seafloor.
The terms “seismic testing” and “seismic blasting” refer to powerful sound sources such as air guns used in oil and gas exploration. We don’t use these in HRG offshore wind surveys.
Sources used in offshore wind that are detectable produce much lower energy and travel far shorter distances from the vessel than those used by the oil and gas industry for exploration miles below the seafloor.
The terms “seismic testing” and “seismic blasting” refer to powerful sound sources such as air guns used in oil and gas exploration. We don’t use these in HRG offshore wind surveys.
FAQS
-
How long will these activities last?
-
Will public beaches or public parking lots near beaches be closed during the investigation work?
-
When will the landfall location and cable route be chosen for Skipjack Wind?
